Mytra Platform
One bot lifts, stores, sequences, and retrieves on its own.
Key Advantages
Three parts. Add bots for throughput, cells for density.
Zero single points of failure
Every bot runs on its own. Swap a field-replaceable unit and it is back online.
Easy installation
Passive structure sets up fast and the station and bot are snap on.
Easy to scale
Cost-effective and time-efficient to deploy, scale and adjust.

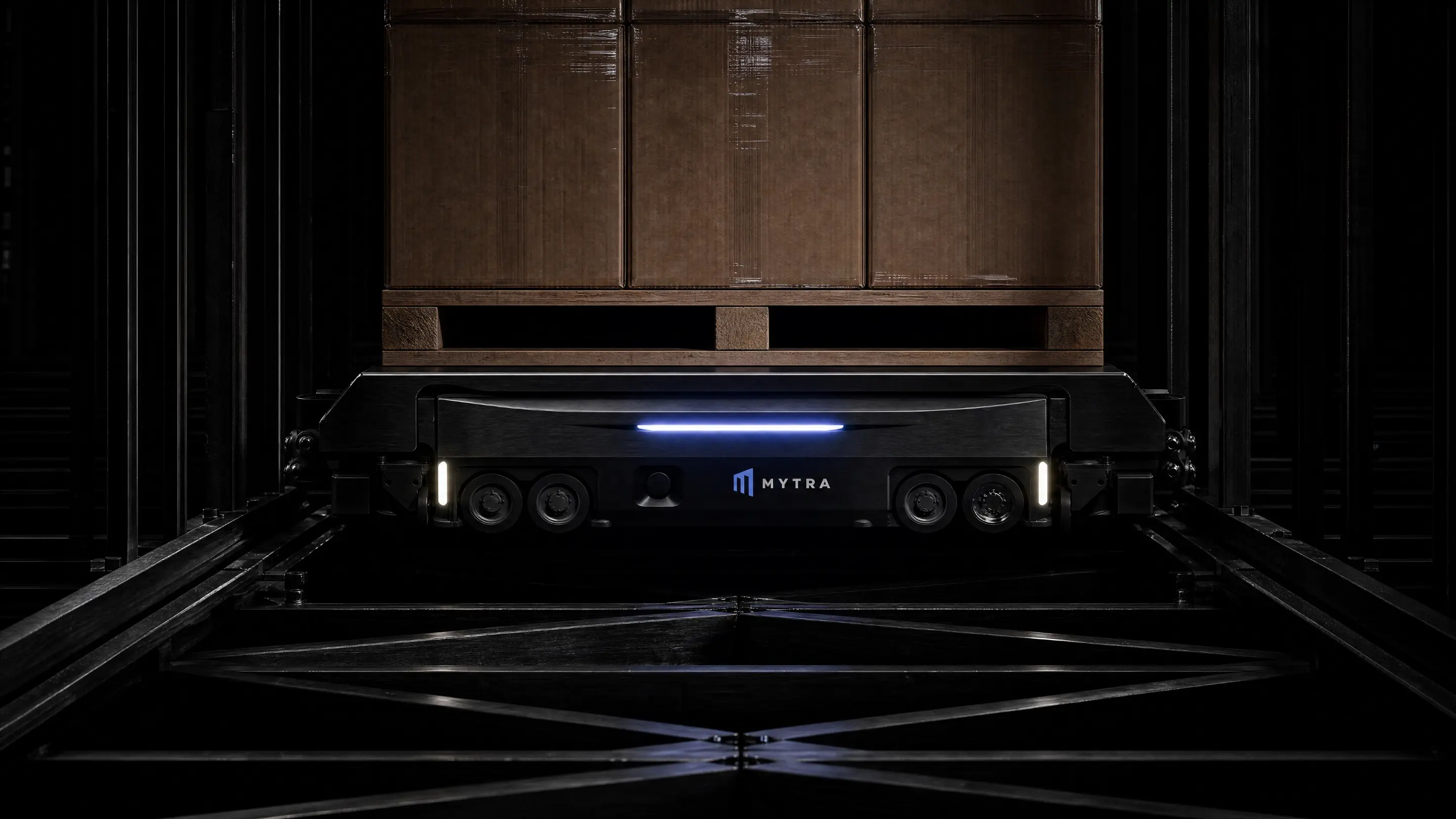

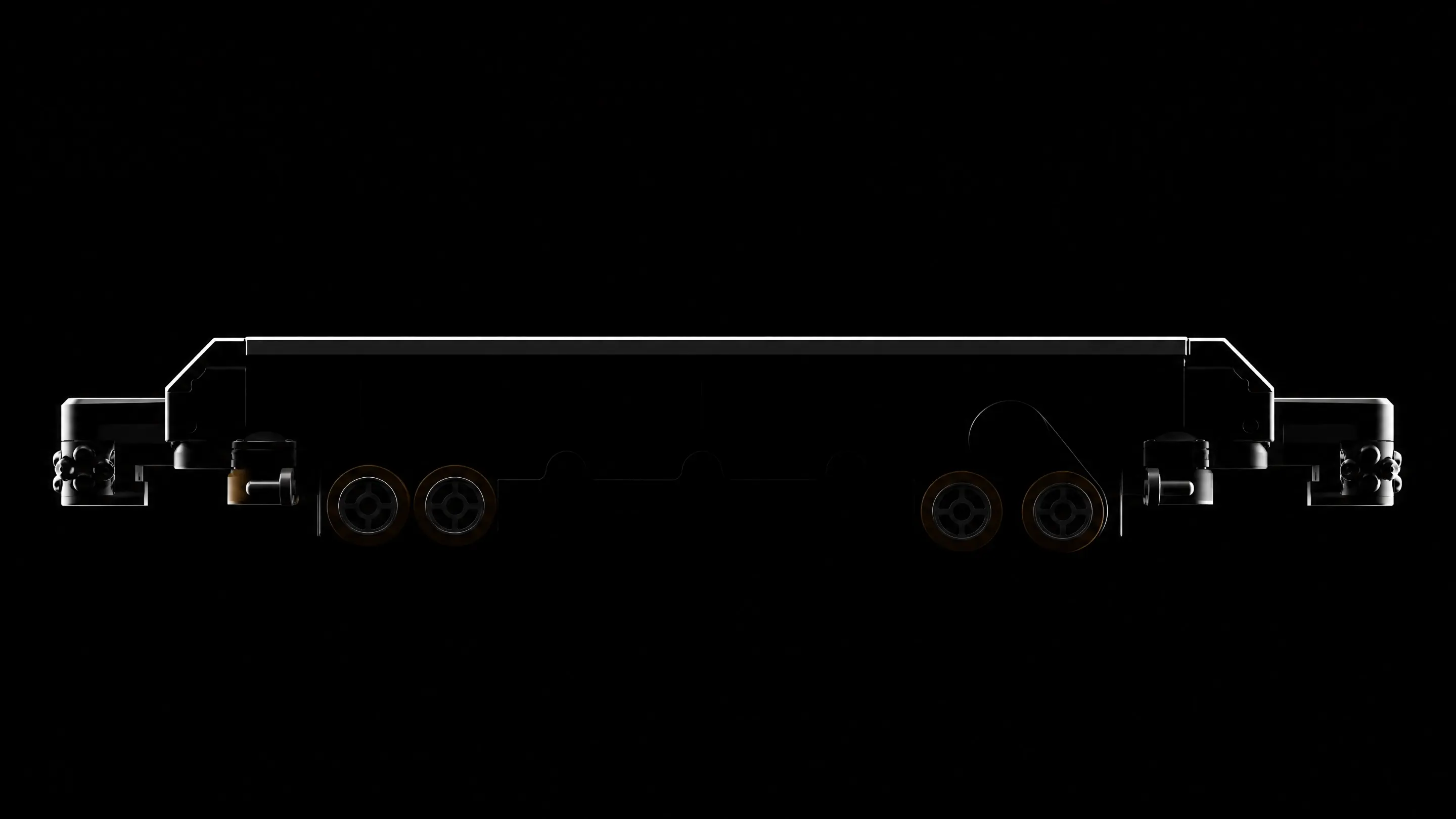

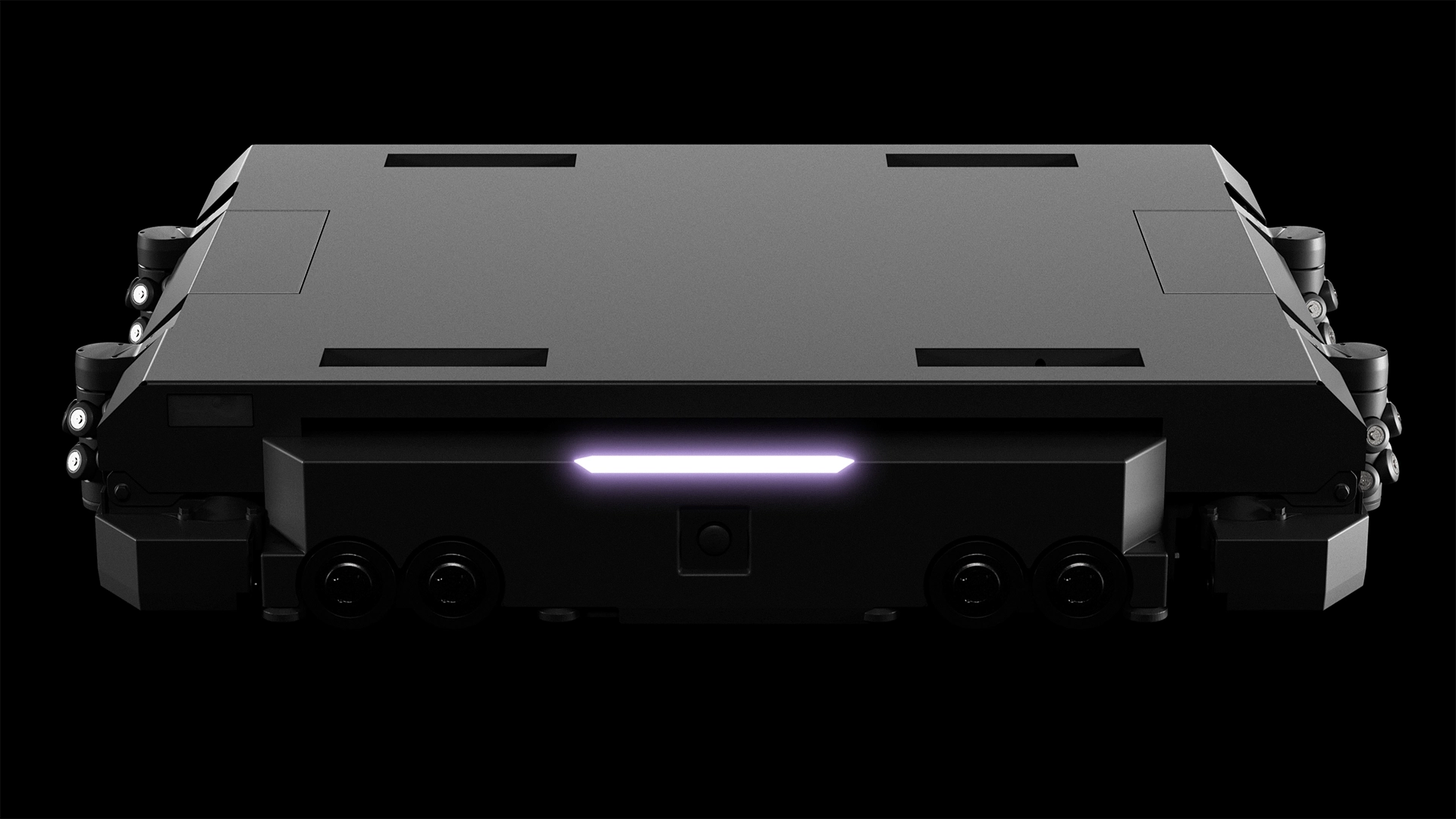

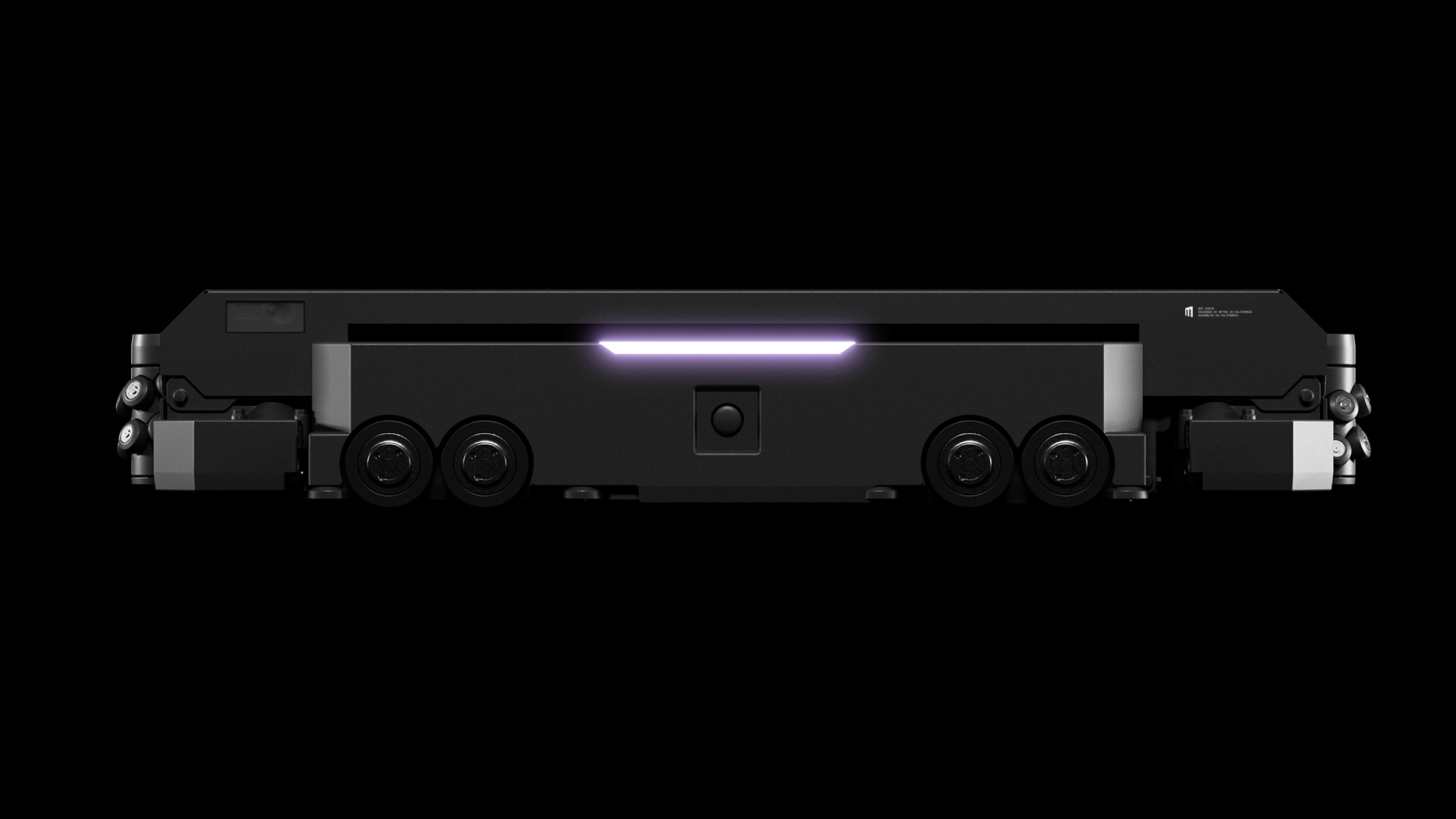

Bots

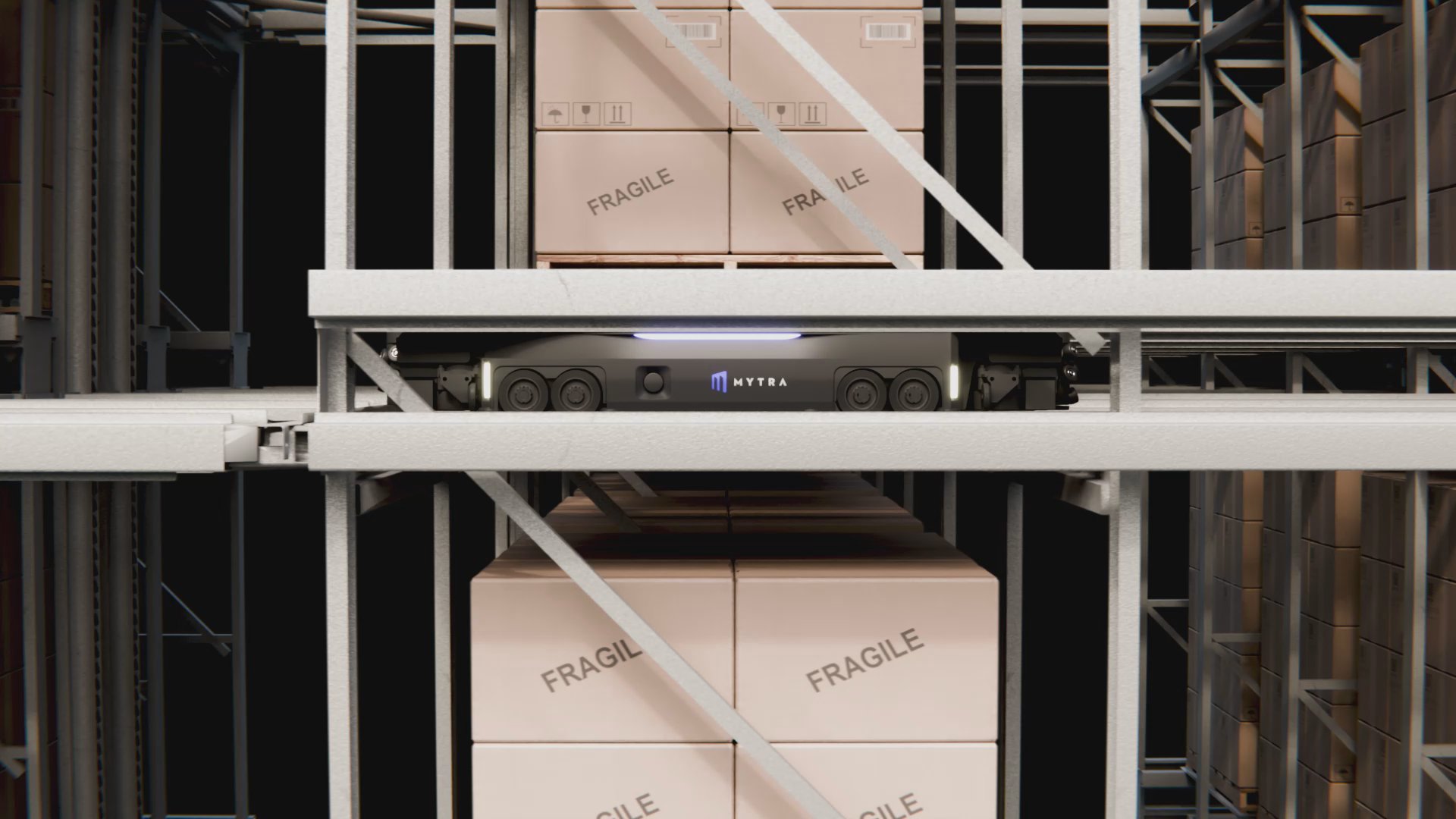

One bot does the work an ASRS, AMR, sorter, and dock buffer do separately. It is its own lift. It climbs the structure to any height and moves in every direction. No fixed lanes, no shared lift to wait on. The whole system runs on under 20 field-replaceable units and the spare-parts kit fits in a closet, not a warehouse.
supports
pallets, cases, eaches
Payload Capacity
3000 lbs
Route planning
autonomous
climb speed
0.3 m/s
travel speed
1.5 m/s

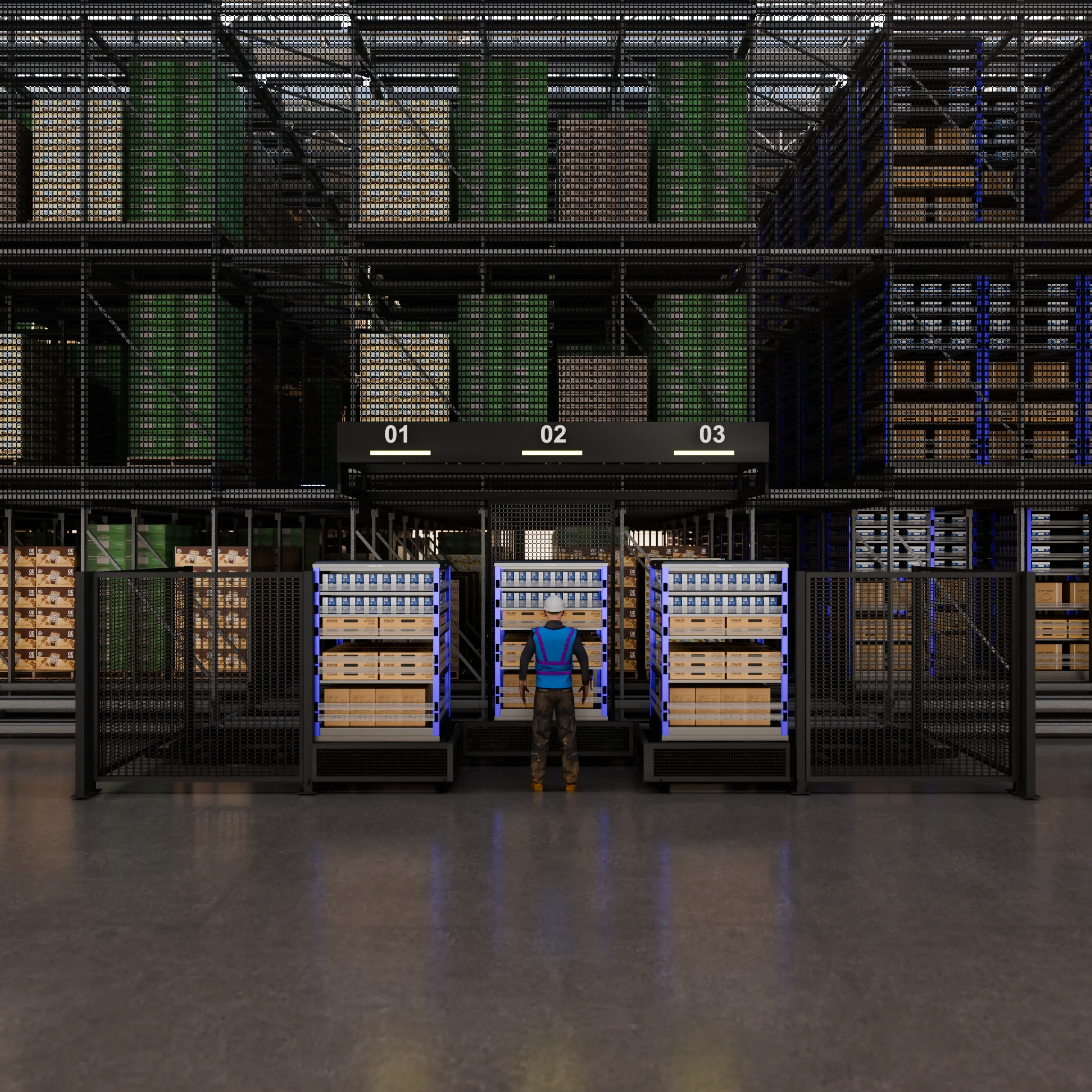

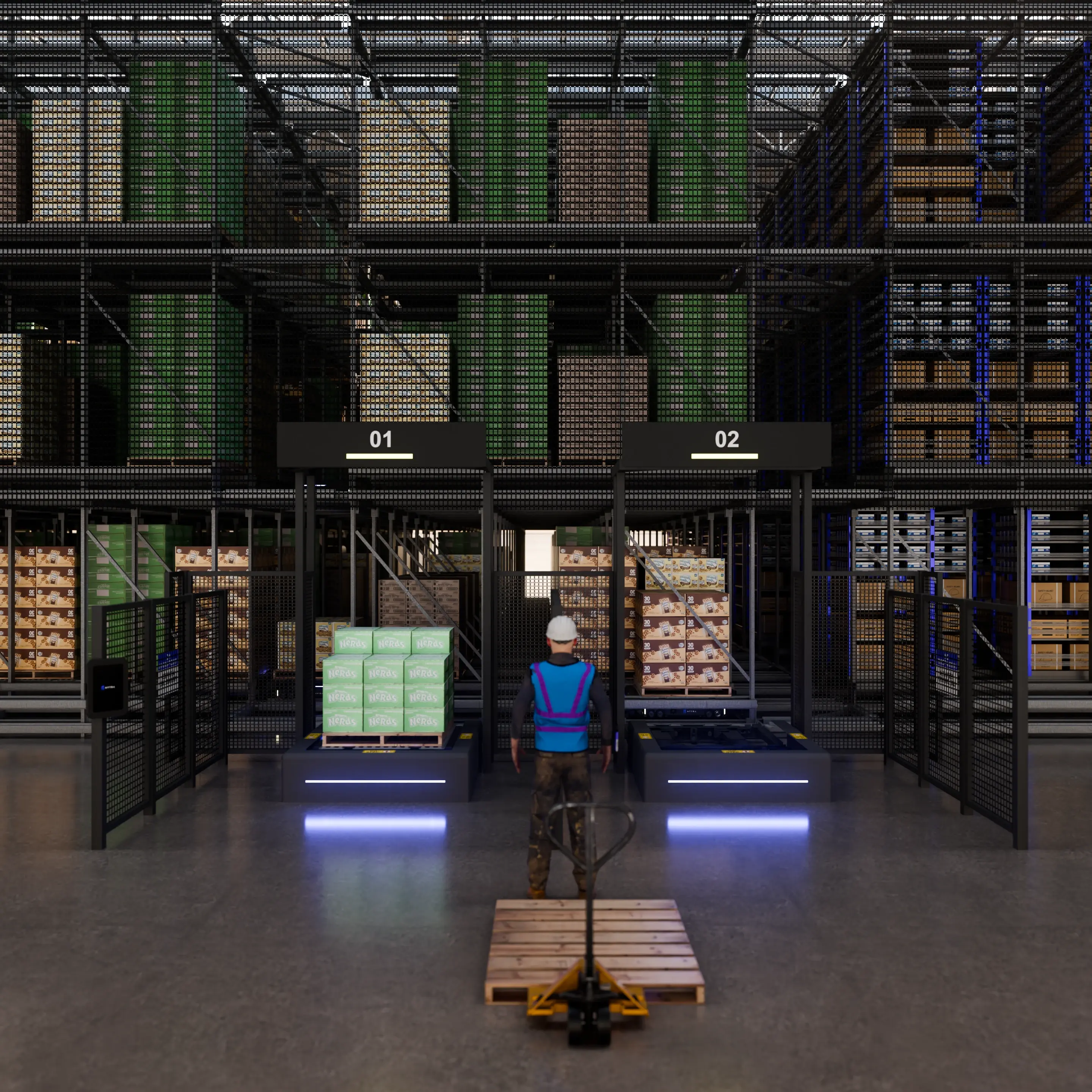

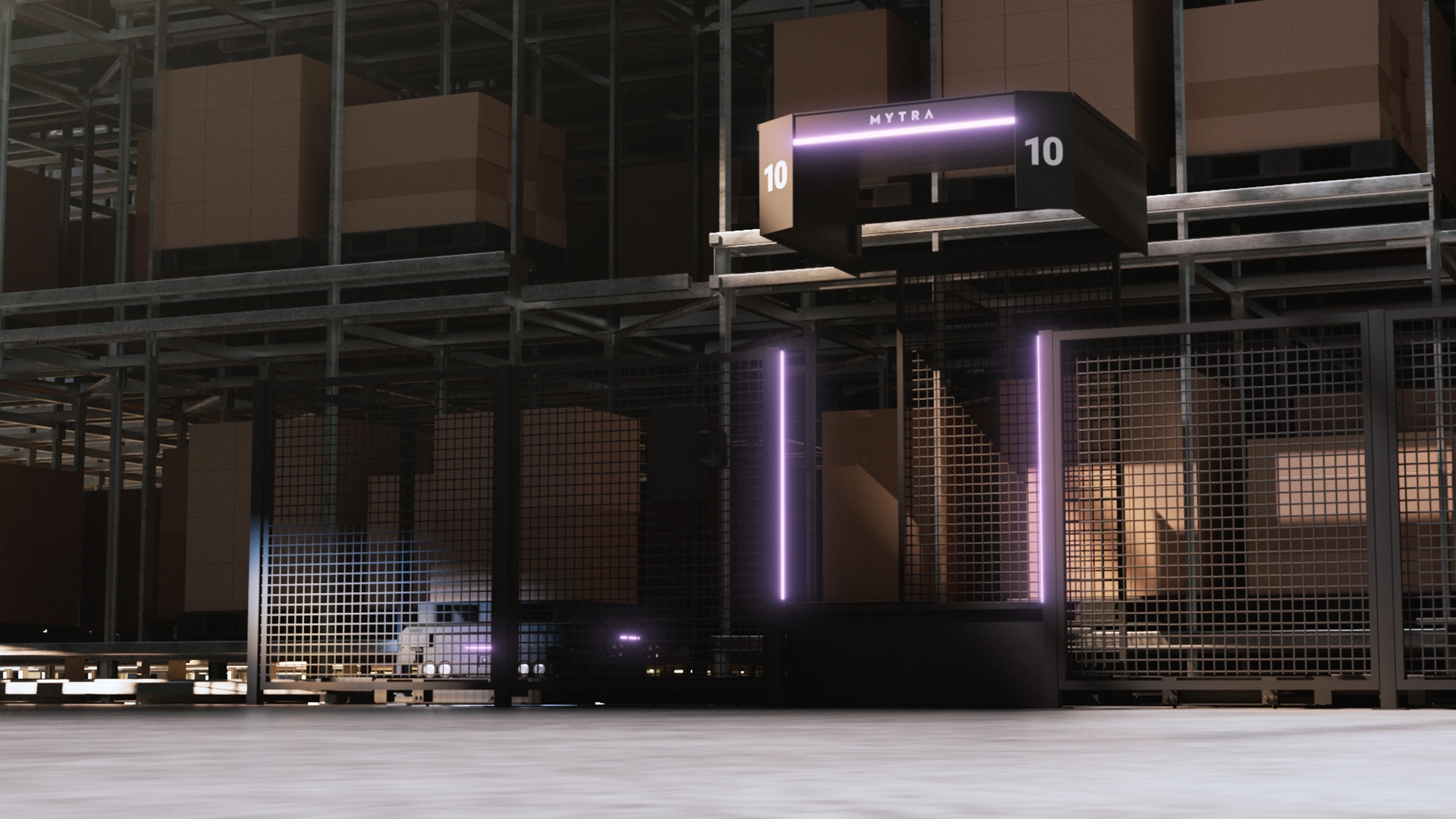

Stations

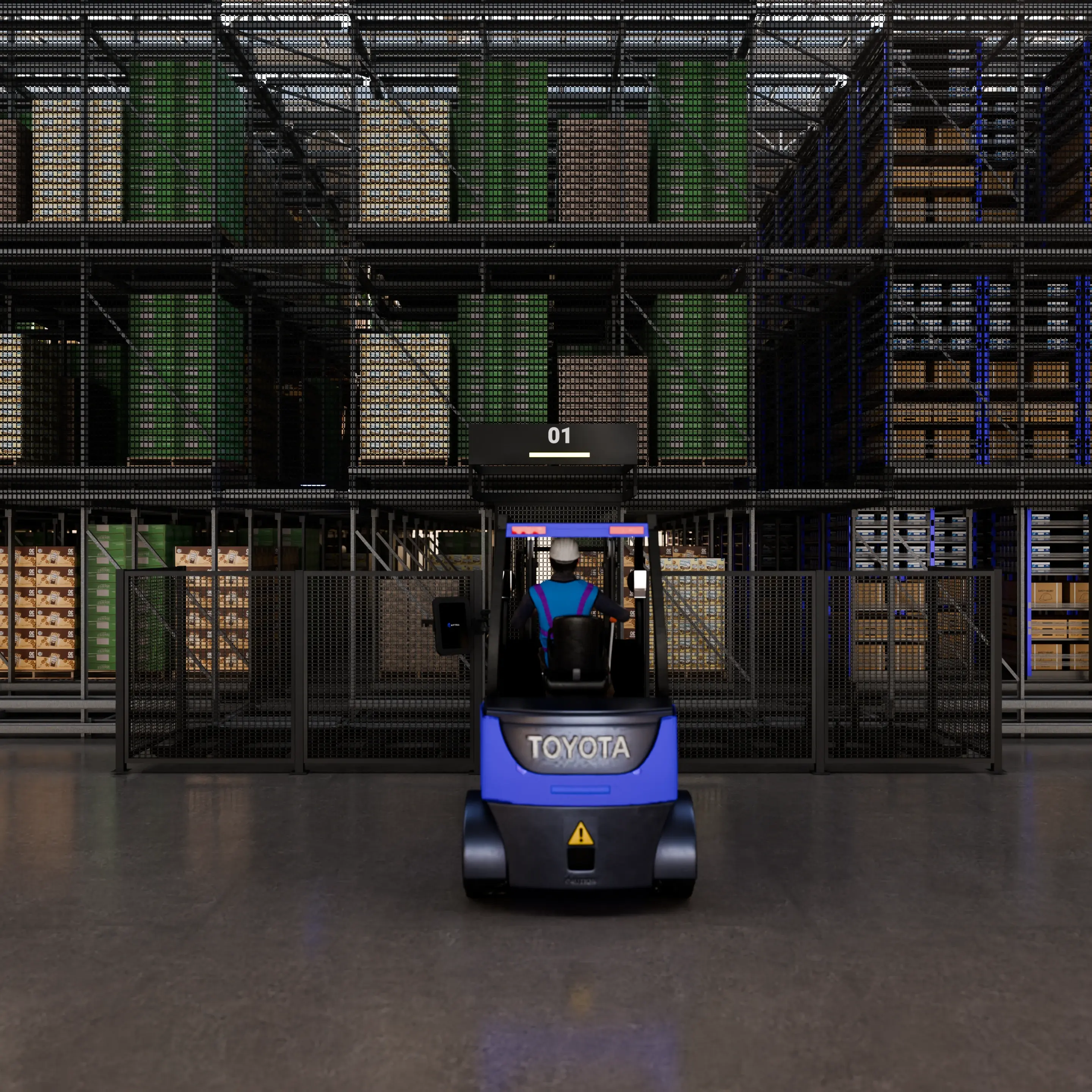

Two station styles cover every job: a case station brings packages to a person, a pallet station hands full loads to a forklift. Place either one anywhere along the structure's edge, inbound or outbound, and move it in software as flow changes.
Installation
Snap on
STYLES
case pick, pallet pick
MODES
store, sequence, retrieve
switch time
In software
Station
one liner description
Station
Station

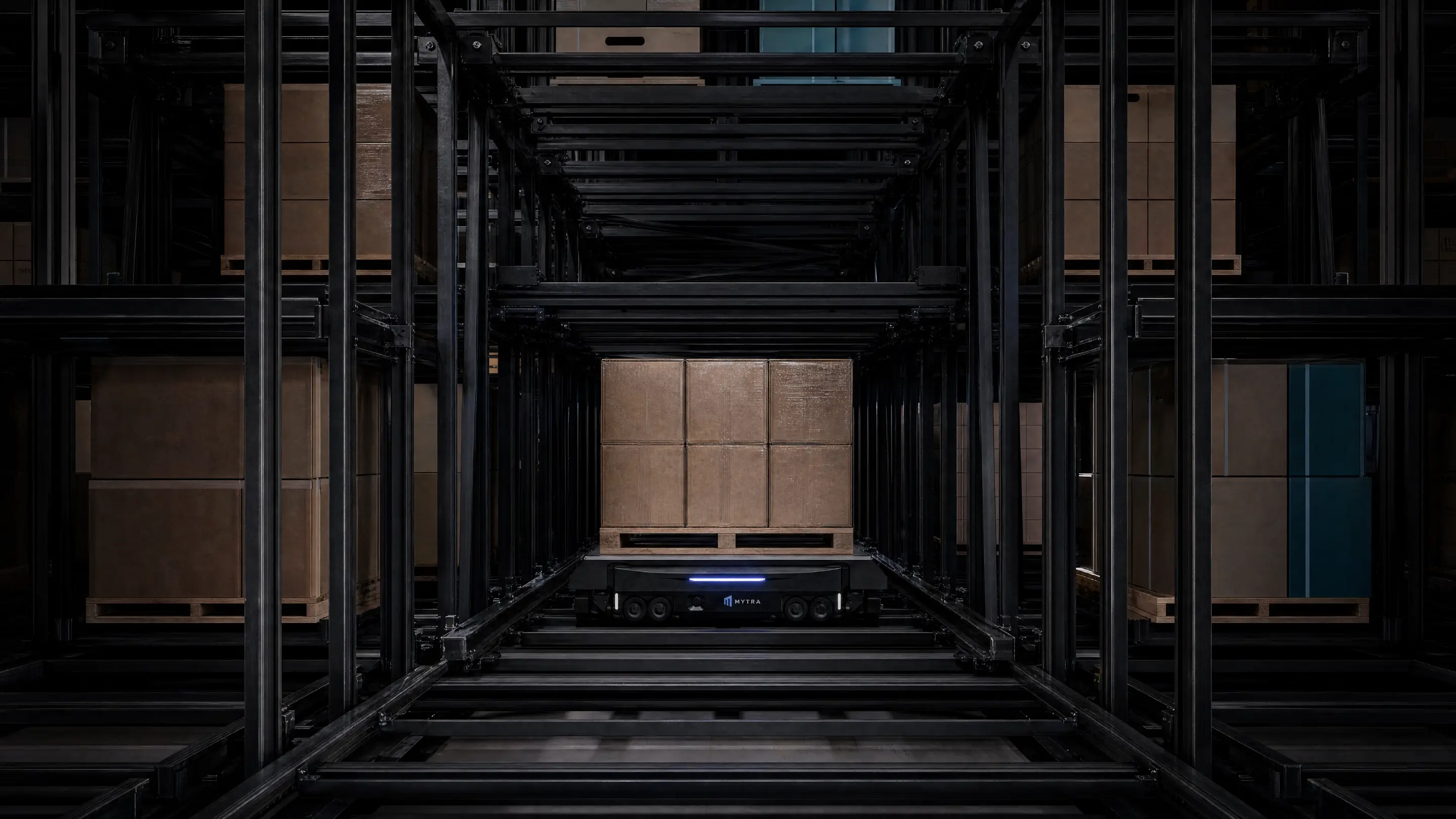

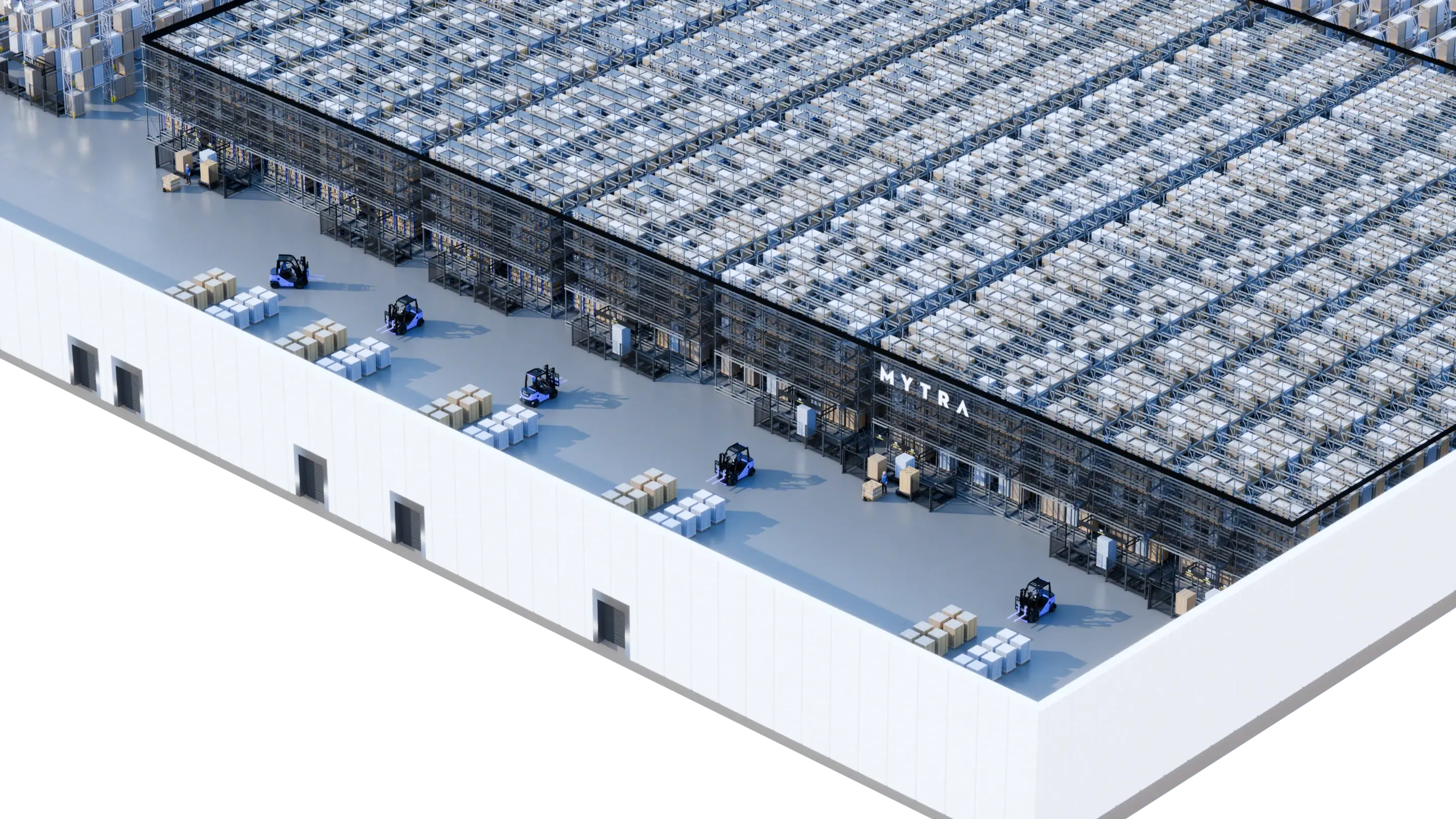

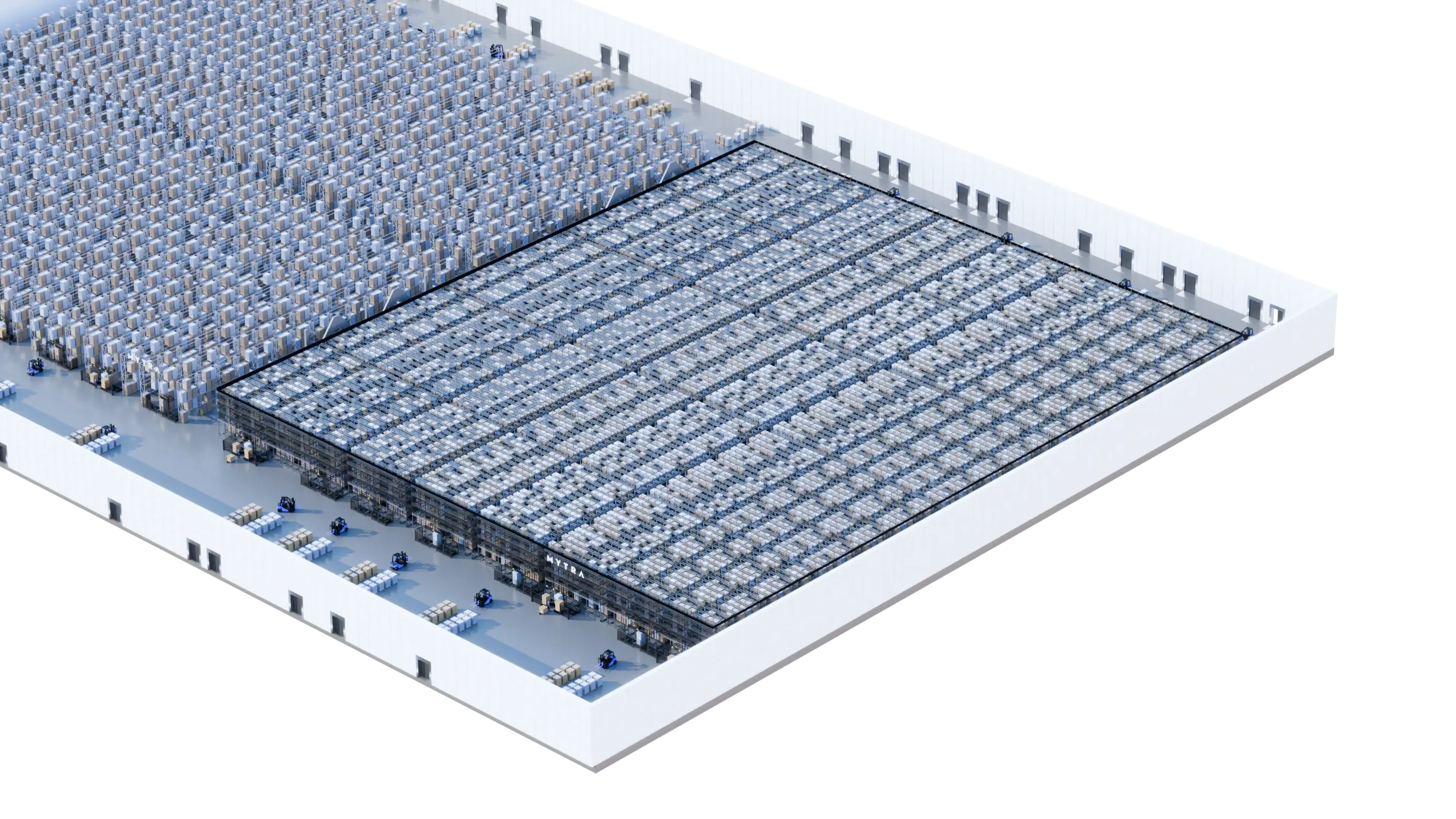

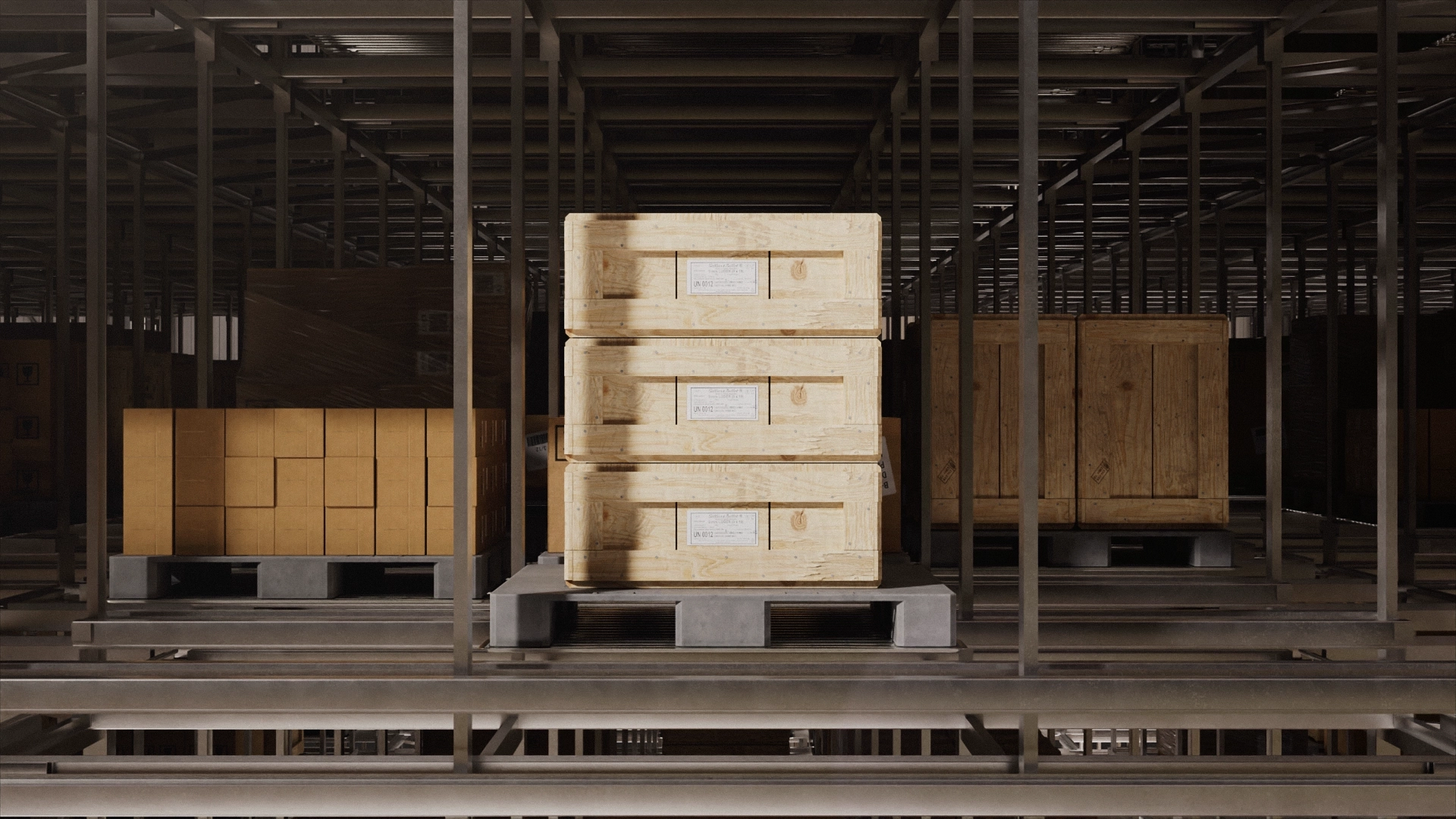

Structure
Passive steel racking holds the most in the space you already have. No motors, no wiring, no maintenance in the structure itself. The bot and stations do all the work.
SIZE
FROM 2,000 SF+
minimum density
3.5+ SF per pallet

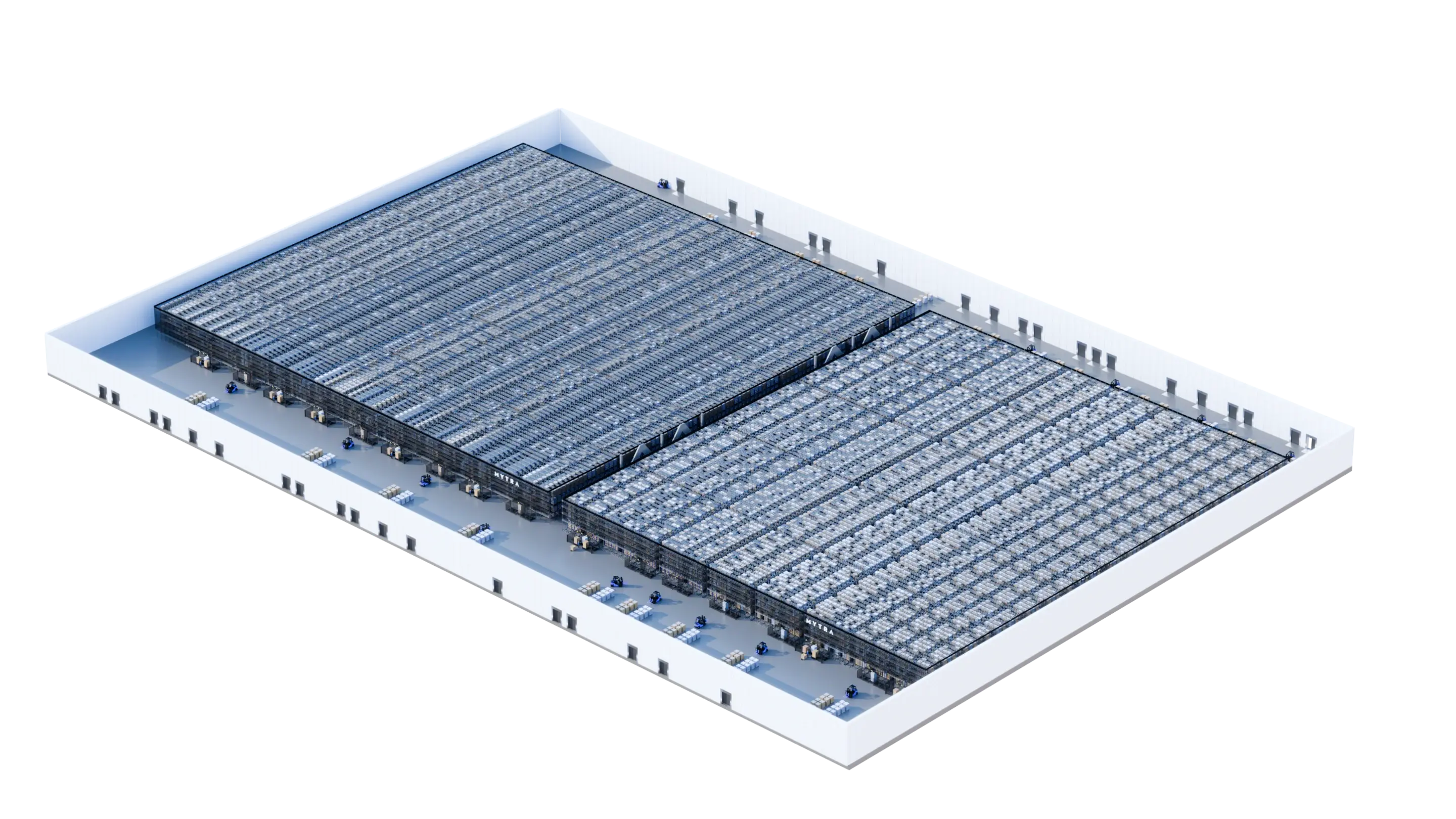

Increase density
add height & cells
COST
passive steel rack
Maximum Density and Flexibility
Storage Density
Payload
Fault Tolerant
Add Bots to Scale
Every Unit Type
Vertical Reach
Navigation
Capability
Structure
High
3000 lbs
Integrated lift
3D, autonomous
Store, sequence, retrieve
$ Passive steel
ASRS
High
2000 lbs
Lifts required
Rails
Store, retrieve
$$$$ Powered crane
AMR
Low
500 lbs
Floor only
2D, floor
Sequence, retrieve
$$ Powered robots
